WI-FI 6 OUTDOOR 90° SECTOR BASE STATION

Skyline M5-S90-X16

Wi-Fi 6 outdoor sector base station with 90° coverage for point-to-multipoint access networks

Skyline M5-S90-X16·M5-S90-X16

Wi-Fi 6 outdoor base station with 16 dBi 90-degree dual-polarized sector antenna delivering 1201 Mbps

Skyline M5-S90-X16 is a carrier-ready outdoor Wi-Fi 6 base station designed for point-to-multipoint networks that require focused sector coverage, stable performance, and efficient deployment at the edge. Operating in the 5.1–5.8 GHz band, it combines 802.11ax efficiency with a high-gain 16 dBi dual-polarized 90° sector antenna to deliver up to 1201 Mbps of wireless capacity across the served zone. This makes it a strong fit for WISP access layers, campus distribution, rural broadband, hospitality coverage, and smart city network expansion where coverage shape and directional control both matter.

Built for demanding outdoor infrastructure, Skyline M5-S90-X16 integrates a low-power Atheros platform, passive PoE Gigabit Ethernet connectivity, and an IP67 weatherproof enclosure in a compact base-station form factor. With 24 kV ESD protection, 8 kV lightning surge protection, integrated firewall and WPA2/WPA3 security, and flexible pole or wall installation, it is engineered for reliable long-term operation in carrier, enterprise, and industrial environments where uptime, resilience, and deployment simplicity are essential.

Highlights & benefits

1201 Mbps Wi-Fi 6 Speed

1024-QAM modulation and long OFDM symbols deliver 1201 Mbps — 50% faster than Wi-Fi 5 — for dense multi-client environments.

16 dBi 90° Sector Antenna

Integrated dual-polarized 90° sector antenna provides focused point-to-multipoint coverage with 16 dBi high gain.

24 kV ESD + 8 kV Lightning Protection

Industry-leading 24 kV ESD and 8 kV lightning surge protection safeguard the unit in the most demanding outdoor environments.

IP67 Weatherproof Enclosure

Rugged ASA housing rated IP67 withstands -20°C to +70°C and resists rain, dust, and UV exposure for long-term outdoor deployment.

Ultra-Low 10 W Power Consumption

24V passive PoE with only 10 W consumption enables simple, cost-effective deployment without dedicated power infrastructure.

Flexible Pole & Wall Mounting

Ball-joint bracket allows all-directional installation on poles or walls with no additional tools required.

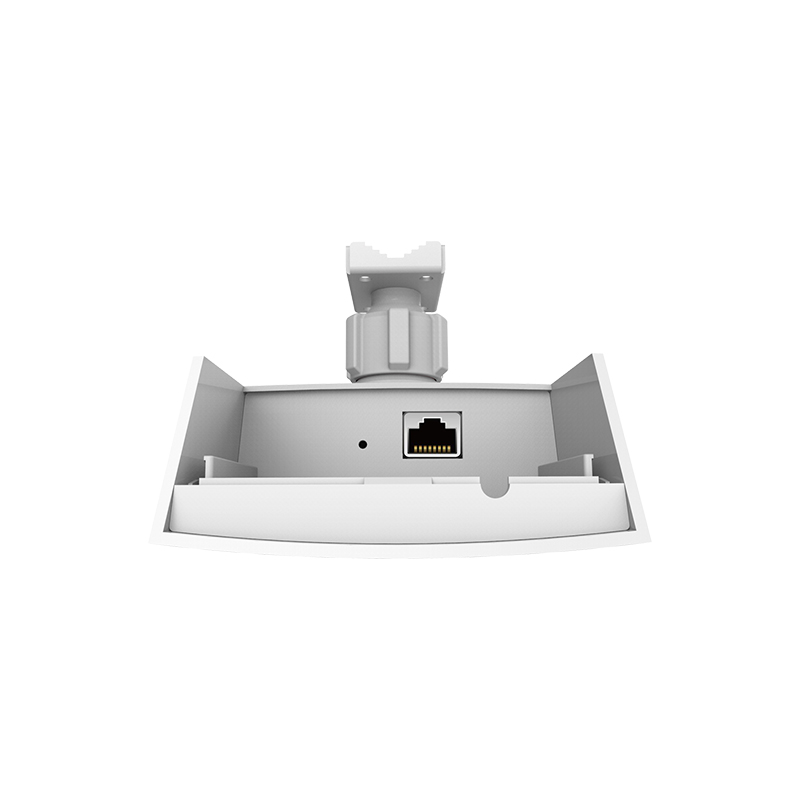

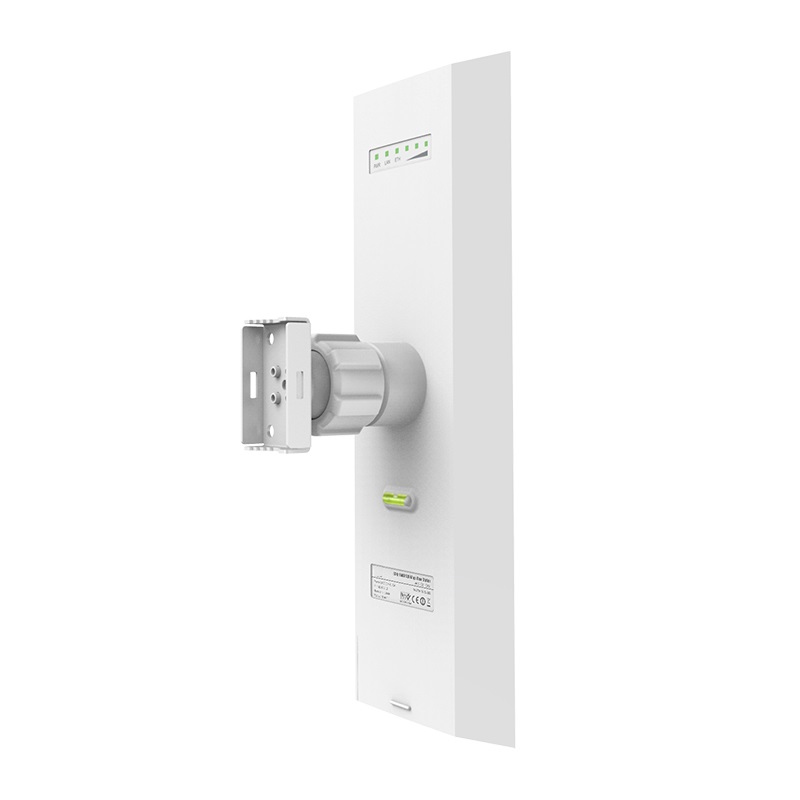

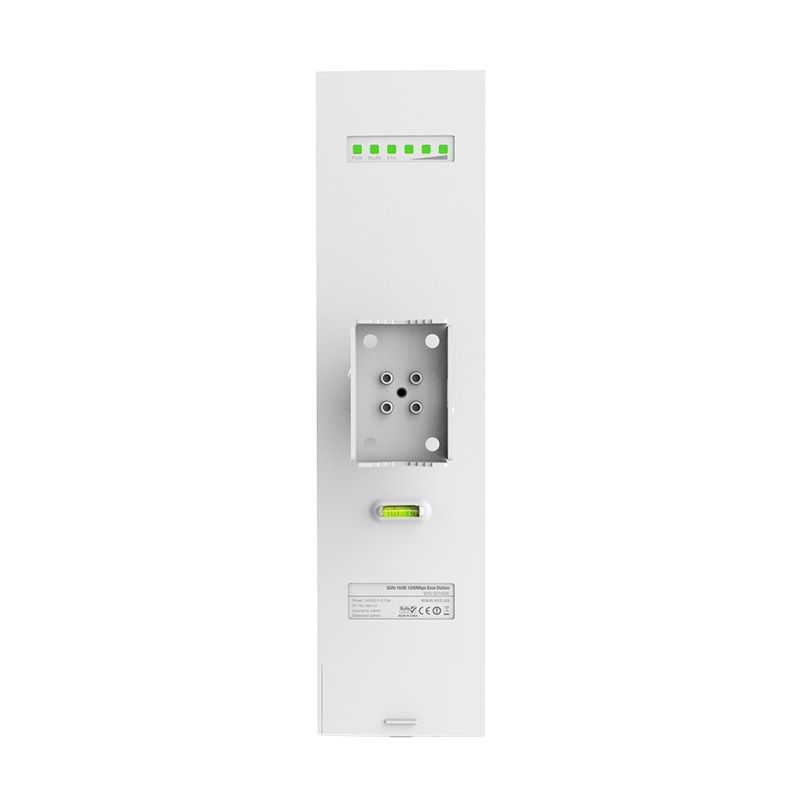

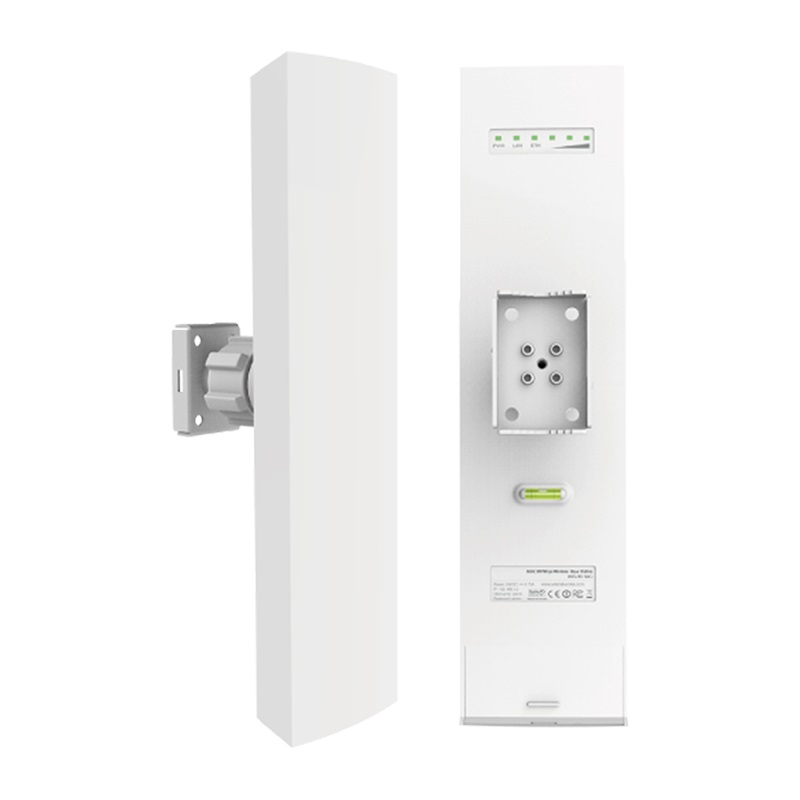

Gallery

Key characteristics

Standard	802.11ax/ac/n/a (Wi-Fi 6)
Frequency Band	5.1–5.8 GHz
Max Speed	1201 Mbps
Modulation	1024-QAM
TX Power	23 dBm ±2
RX Sensitivity	-98 dBm @1M / -67 dBm @1201M
Antenna Gain	16 dBi
Antenna Type	90° Dual-Polarized Sector
Interface	1× Gigabit Ethernet (Passive PoE)
Power Input	24 VDC / 0.75 A
Power Consumption	10 W
Chipset	Atheros 1.2 GHz
Encryption	WPA/WPA2-PSK (AES/TKIP), WEP
ESD Protection	24 kV
Surge Protection	8 kV
IP Rating	IP67
Operating Temp.	-20°C to +70°C
Dimensions	395 × 100 × 90 mm
Weight	0.77 kg
Certifications	CE, RoHS
