COMPACT WI-FI 5 OUTDOOR CPE WITH 23 dBi DISH ANTENNA

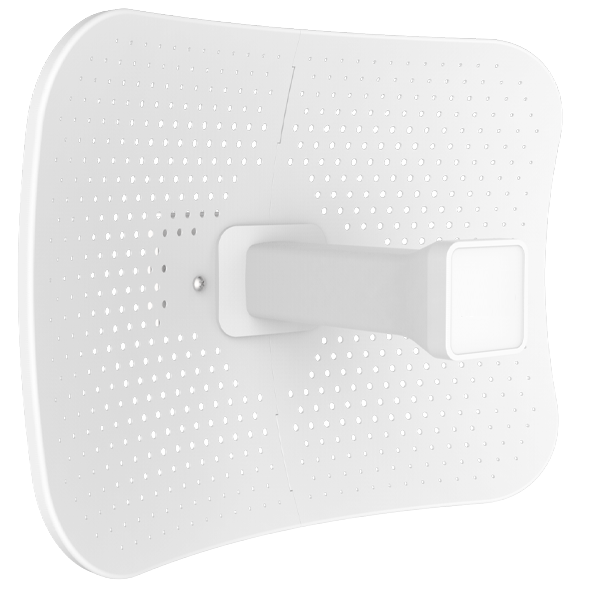

Skyline C5-AC23

Compact 5 GHz Wi-Fi 5 outdoor CPE with 23 dBi dual-polarised dish for 10 km PtP/PtMP and FWA links

Skyline C5-AC23·C5-AC23

Compact Wi-Fi 5 outdoor CPE with integrated 23 dBi dual-polarised dish antenna for 10 km PtP/PtMP links

The Skyline C5-AC23 is a compact Wi-Fi 5 (802.11ac) outdoor CPE designed for long-range subscriber and edge connectivity. Its Radio-in-Feed architecture eliminates cable loss between the radio and the feedhorn, while the integrated 23 dBi dual-polarised parabolic antenna with a narrow 10°×10° beam delivers excellent interference rejection and stable line-of-sight links of up to 10 km.

Built for harsh outdoor deployment, the C5-AC23 combines a 2×2 MIMO radio in the 5.15–5.825 GHz band with 20/40/80 MHz channels for 867 Mbps PHY (500 Mbps+ throughput in practice). Universal 360° alignment with a detachable dish, IP66 sealing, 16 kV ESD, -40 °C to +70 °C operation, integrated firewall and WPA/WPA2/WPA3 security make it a reliable choice for FWA, campus and enterprise subscriber connections — with management via the embedded web UI or Ainsora Atlas Cloud and a 2-year warranty.

Highlights & benefits

23 dBi Dual-Polarised Dish

Integrated dual-polarised parabolic dish with a tight 10°×10° beam pattern maximises link gain and interference rejection.

10 km Line-of-Sight Range

Optimised for outdoor PtP and PtMP links of up to 10 km in clear line-of-sight conditions.

867 Mbps Wi-Fi 5

2×2 MIMO with 20/40/80 MHz channels and 802.11ac delivers 867 Mbps PHY (500 Mbps+ real throughput).

Radio-in-Feed Architecture

Radio integrated directly in the feedhorn cuts cable loss and improves receive sensitivity.

IP66 + 16 kV ESD

ASA sealed feedhorn rated IP66 with 16 kV ESD protection operates from -40 °C to +70 °C.

6 W on 24 V Passive PoE

Low 6 W power consumption on 24 V passive PoE simplifies installation and lowers running cost.

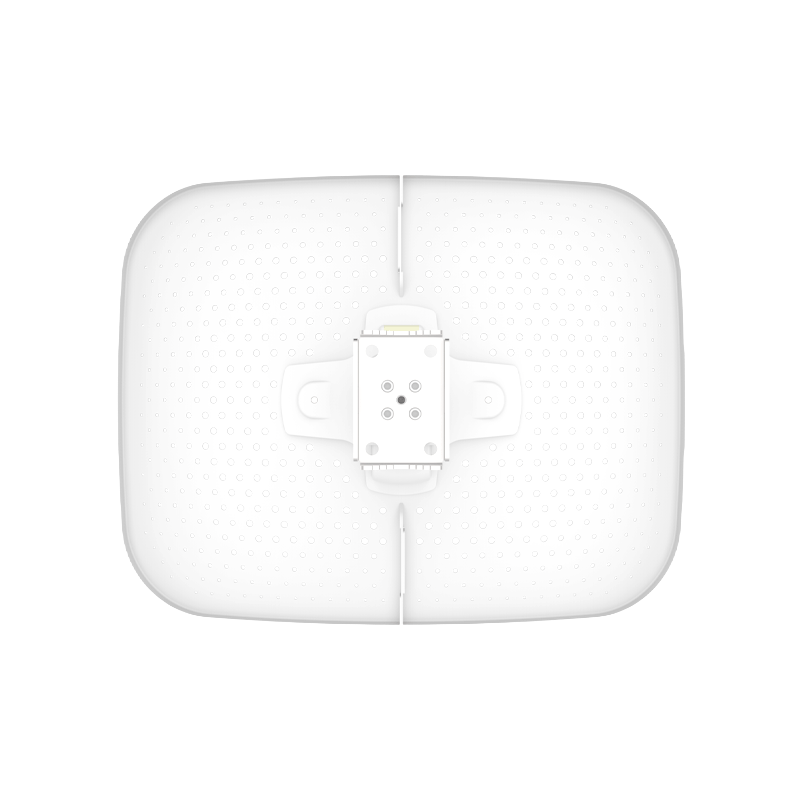

Gallery

Key characteristics

Standard	802.11ac/n/a (Wi-Fi 5)
Frequency Band	5.15 – 5.825 GHz
Channel Bandwidth	20 / 40 / 80 MHz
MIMO	2×2
Max PHY Rate	867 Mbps
TX Power	27 dBm ±2
RX Sensitivity	-67 dBm @867 / -98 dBm @1 Mbps (10% PER)
Antenna Type	Parabolic 23 dBi dual-polarised
Beam Width (HPBW)	H: 10° / V: 10°
Range	1 – 10 km (LOS)
Interface	1× 10/100/1000 Base-T
LEDs	Power, LAN, WLAN, RSSI ×3
Power Input	24 VDC / 0.75 A (passive PoE)
Power Consumption	6 W
Encryption	WPA/WPA2/WPA3, AES/TKIP, WEP
Firewall	Integrated
Management	Web / Ainsora Atlas Cloud
ESD Protection	16 kV
IP Rating	IP66
Operating Temp.	-40 °C to +70 °C
Storage Temp.	-40 °C to +85 °C
Humidity	10–95 % non-condensing
Dimensions	350 × 270 × 255 mm
Weight	3 kg
Certifications	CE, RoHS
Warranty	2 years
